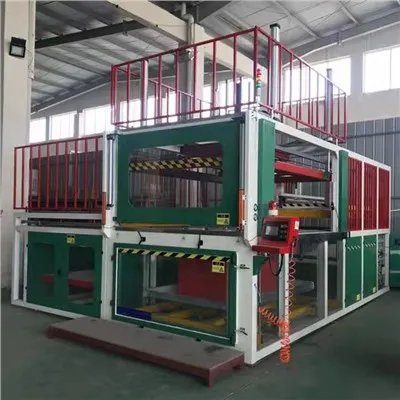

Thermoplastic Vacuum forming Machine

Thermoplastic vacuum forming machine is professional for bathtub making. This vacuum forming machine is used carbon fiber heating tub which is not easy break and heat much faster. this machine is used for ABS, acrylic/abs sheet automatic forming, its biggest advantages is reasonable structure ,easy to operate and high forming precision.



Name	Thermoplastic vacuum forming machine
Condition	New
Plastic type	ABS sheet
thick range	1.8-4.5mm
Operating Power	25kw
Control	manual operation control
Working voltage	220v or 380v
Delivery port	Shanghai or Ningbo
Packing detail	PE film wrapped, nylon rope fixed
Delivery time	15-20 days
Payment terms	TT



1.Competitive price with reliable quality

2. The free technical training for making bathtub

3. Ease of tooling,high efficiency

4. On line technical supporting



1. PMMA/ABS sheets

The thickness: usually use from 2mm to 4.5mm

Color: usually use various white

2. Resin

DC191, making the reinforcement with the fiberglass

3. Fiberglass chop strand mat

Making the reinforcement with the resin together

Specifications: 300g/m², 400g/m²

4.CaCO3 powder

As filling materials for the resin, you could buy it in local

5 .Catalyst for the resin

The blue chemical(mixed with resin and CaCO3 powder ) and the white chemical(added it when spraying)



1.What is the forming temperature and heating time?

The temperature is about 120-180℃ for abs or acrylic, usually the heating time is 150 seconds.



2.How to solve the shallow lines on the formed sheet ?

Usually the shallow lines happen around the edge of sheet, these parts usually with lower temperature, you can raise the temperature of this section to solve it.
